PRODUCT PROFILE

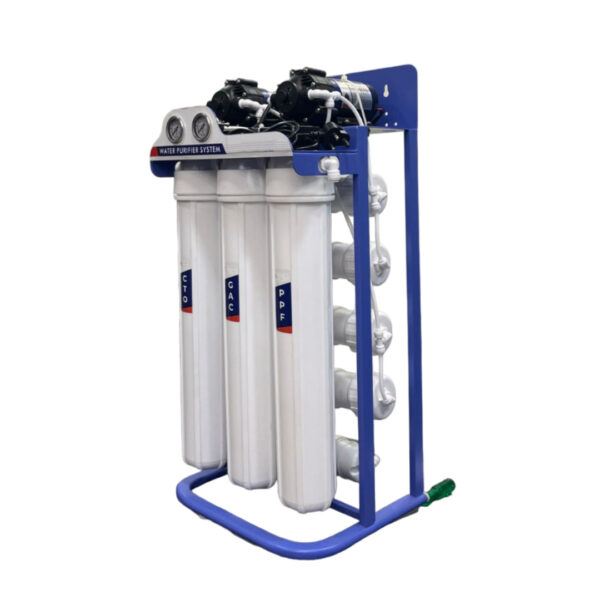

A Commercial Reverse Osmosis (RO) system designed to provide purified water at medium capacity for businesses such as hotels, restaurants, office buildings, schools etc. Removes dissolved salts, suspended solids, organics, microorganisms etc., making water potable or suitable for light process use.
Applications
Drinking water supply for restaurants, cafes, offices
Hotels, resorts
Schools, hospitals (non-sterile uses)
Light industry / small workshops needing clean water
Pre-treatment feed for boilers, softeners
| Parameter | Typical Values / Options |
|---|---|
| Flow / Capacity | 100–1,000 LPH (litres per hour) or equivalent GPD (gallons per day) |
| Feed Water Quality Requirements |
• TDS up to ~1,000–1,500 ppm • Turbidity < ~1 NTU • Hardness (as CaCO₃) depending on pretreatment – softer water preferred • Chlorine residual low or removed; iron & manganese minimal • pH ~6.5–8.5 (typical acceptable range) |
| Recovery Ratio | ~40–60% depending on quality of feed water and system design |
| Salt Rejection | ~90–98% for commercial membranes under good conditions |
| Operating Pressure | ~7–15 bar (≈100–220 psi) for brackish or municipal feed water systems |
| Pre-Filtration Stages | Sediment filter (micron cartridge), carbon filter, multimedia or dual media filter; optional softening depending on feed hardness |
| Instrumentation & Controls | Pressure gauges, flow meters, TDS monitor, auto shutdown (low/high pressure), manual & flushing options |
| Materials | FRP or SS304/SS316 for membrane housings; polymer/PP for filters; corrosion-resistant, durable casing |
| Electrical / Power Requirements | 220–240V single phase (for small/commercial units) or three-phase for higher capacity; motor/pump sized accordingly |
